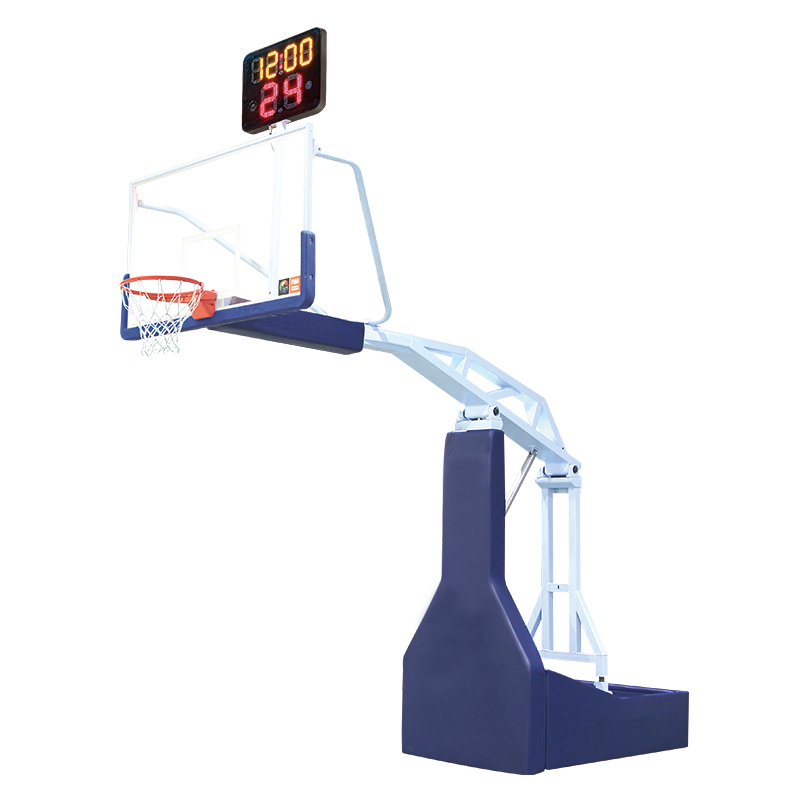

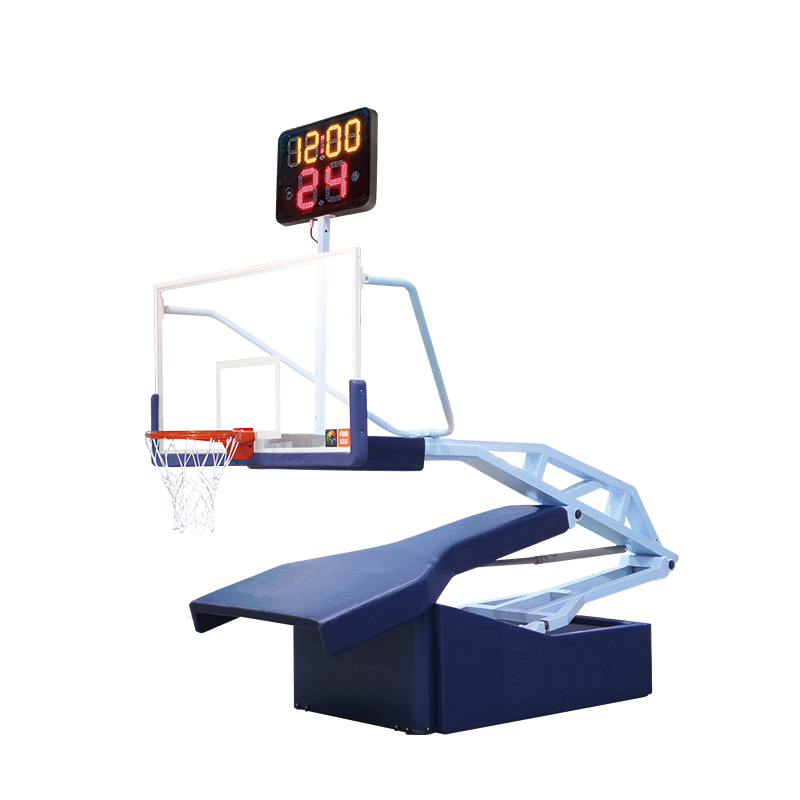

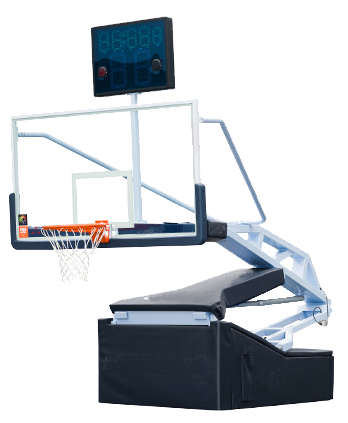

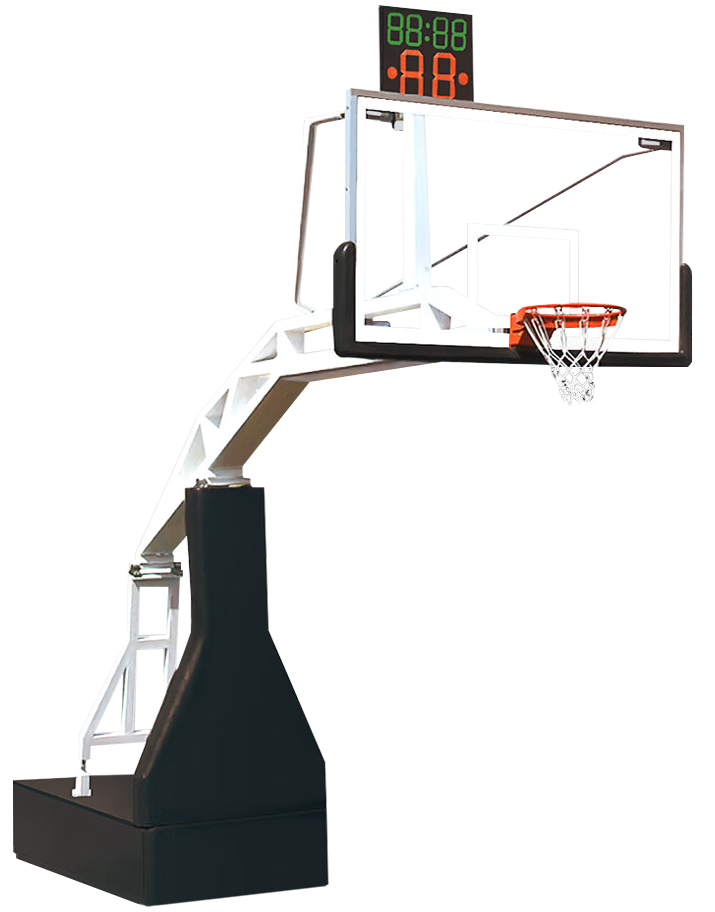

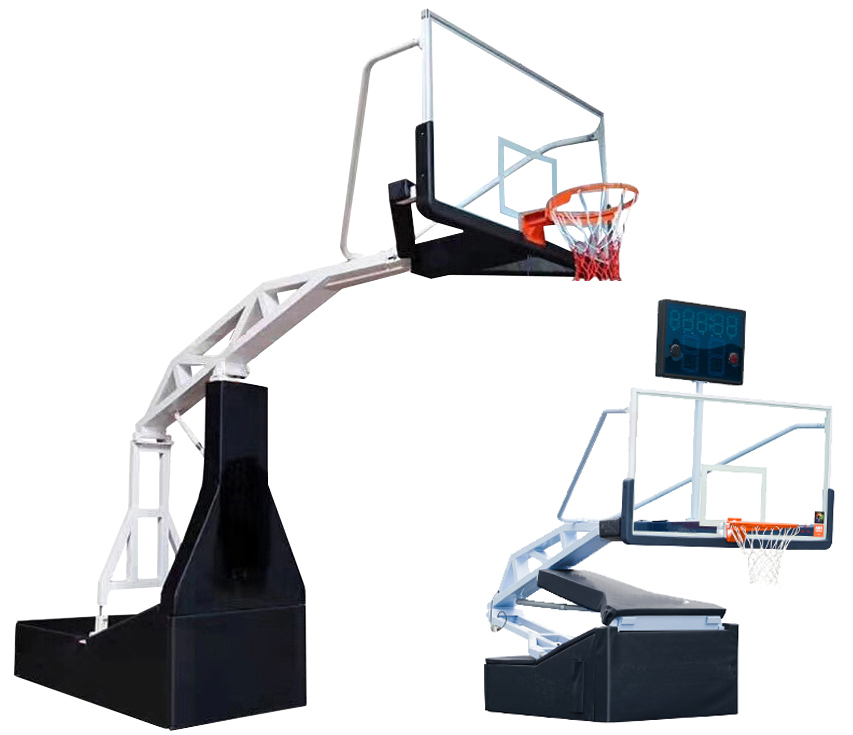

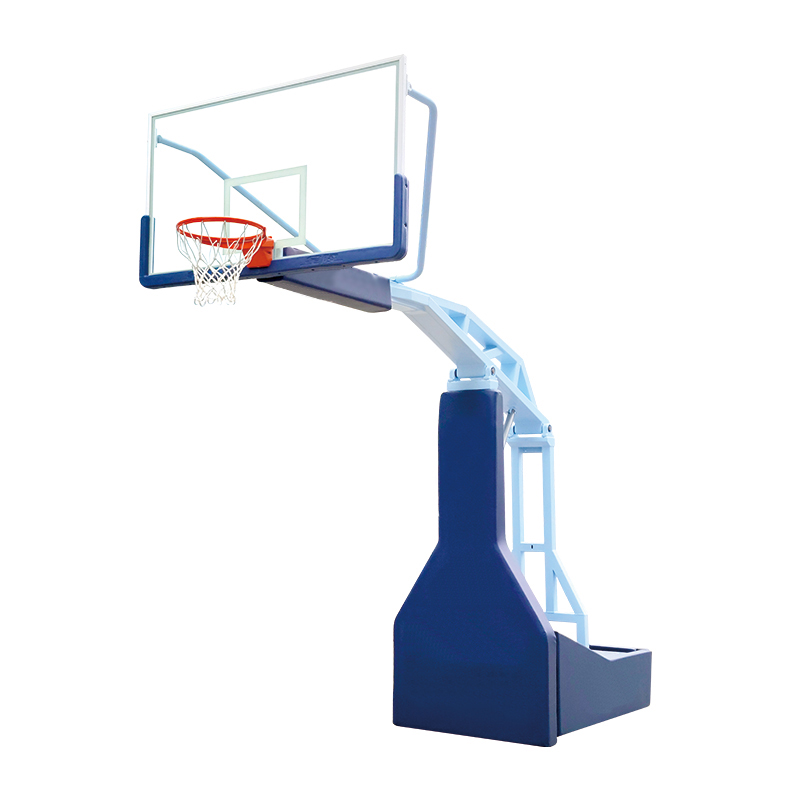

Manual Hydraulic Basketball Stand

Specification

Material

Remark

Backboard

1.Size:1800mm*1050mm. Explosion-proof tempered glass.

2.Aluminum alloy edging.

3.Safety protection strip.

It is fully qualified for the safety of dunking and other intense sports, and can be applied to various large-scale competitions and standard training.

Pillar

1.High quality square steel pipe

2.Size:.360mm*120mm*3mm

Wing type reinforcement

Bottom box

1.High quality steel plate.

2.Size:500mm*1100mm*2200mm

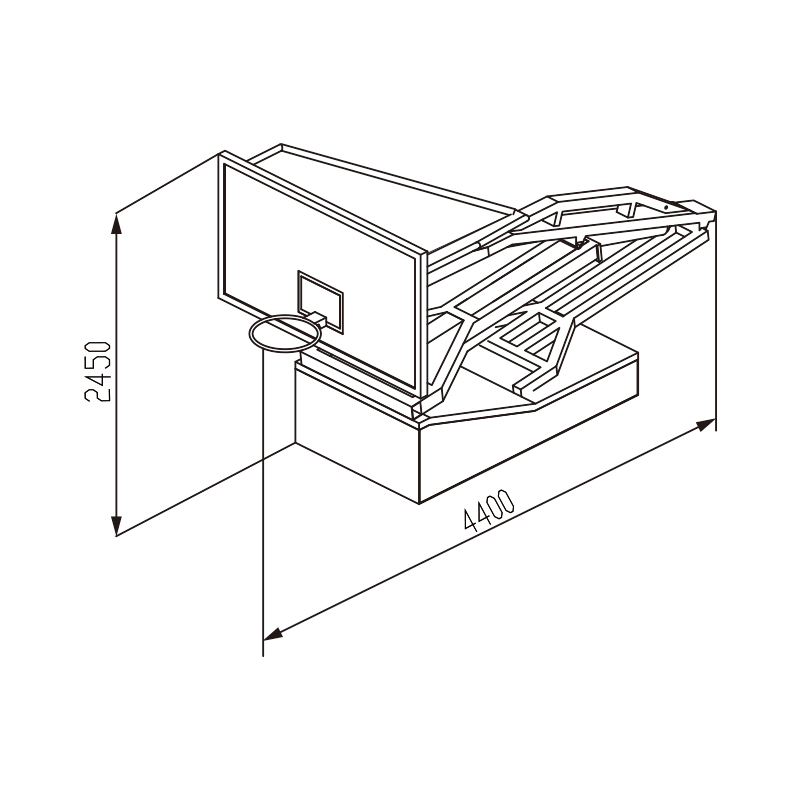

The bottom box can be loaded with heavy objects to ensure stability during use. It is equipped with a manual hydraulic operating system, which can easily complete lifting, folding, lifting wheels, moving, etc.

Tie rod

1.Diameter: 60mm*60mm

2.Square tube.

3.Trapezoid.

The cross beam and pillar are diagonally connected to form multiple triangles to ensure the stability of the entire basketball stand.

Overhang

2.25m

Surface Treatment

Electrostatic epoxy powder painting, environmental protection, anti-acid, anti-wet, painting thickness: 70~80um

Padding

Weather resistant nylon with fully protective sleeve

Portable

Built in 4 wheels

Rim

1.Diameter: 450mm

2. High quality 20# solid round steel

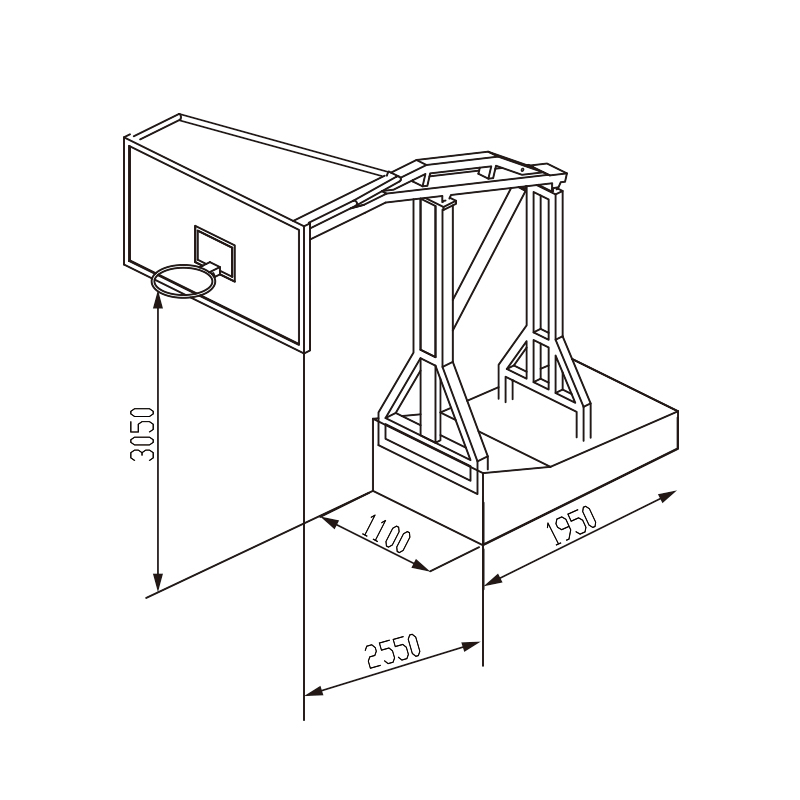

3. The height from the ring to the ground is 3050mm.

24 seconds board

Single sided

Warranty

5 years
